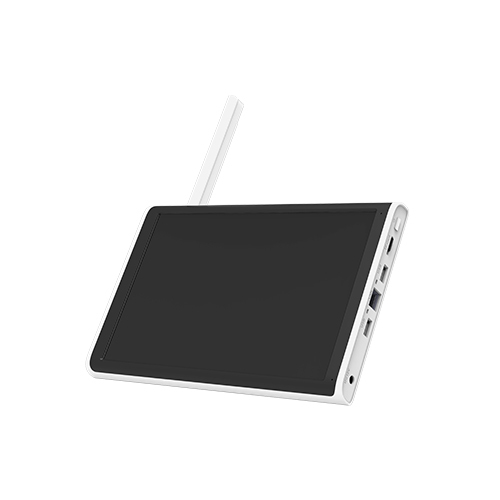

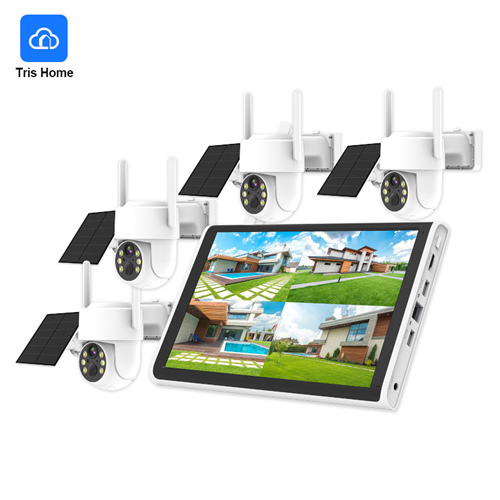

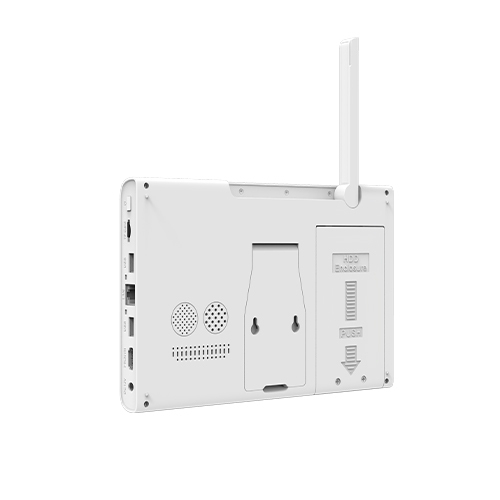

4CH 1080P LCD WiFi NVR
WiFi 1080P CAM
60 duckbilled housing
4pcs X ￠10 Lamp beads
Infrared distance: 20~30 m
HD lens 3.6MM
IR cut filter with auto switch
| WiFi NVR Specification | ||
| System | Main processor | XM8516D |
| screen | 10.1 inch 1280*800 | |
| Operating System | Embedded Linux | |
| System resources | Simultaneous multi-channel real-time recording, playback, network operation, USB backup | |
| Interface | Operator interface | 16-bit true color graphic menu operation interface, support mouse operation |
| Preview | 1/4 | |
| Video input (IP) | 4*3MP | |
| Access bandwidth | 24Mbps | |
| Forwarding bandwidth | 24Mbps | |
| Video compression | H.265+ | |
| Display quality | Max 3MP | |
| Playback quality | 3MP | |
| Decode | 4*3MP | |
| VR | Unsupport | |
| Face recognition | Support(depend on camera) | |
| Human shape detection | Support(depend on camera) | |
| Audio | Audio compression | G.711A |
| Microphone | support (camera) | |
| horn | support (NVR) | |
| Record & playback | Recording mode | Manual>Alarm>Dynamic Detection>Timing |
| Local payback | 4*3MP | |
| Search mode | Search by Time/Calendar/Event/Channel | |
| Record storage | HDD、Network,SD card | |
| Backup mode | Network backup, USB hard disk, USB burner, | |
| External Interface |
Video output | NO |
| Audio I/O | 0/0 (Support intercom on app) | |
| Network interface | 1*RJ45 10M/100M Adaptive Ethernet port+4ch WIFI | |
| USB interface | 2*USB2.0 ports | |
| HDD | 1* SATA+1 SD card | |
| Serial interface | No | |
| Other | ONVIF | No |
| fan | support (NVR) | |
| temperature | -10℃-＋60℃ | |
| humidity | 10%-90% RH | |
| Power supply | DC 12V/2A | |
| Power Consumption | <10W(Without HDD) | |
| Dimension | 252*162*22 mm; | |
| Weight | 0.7 kg | |
